Product Overview

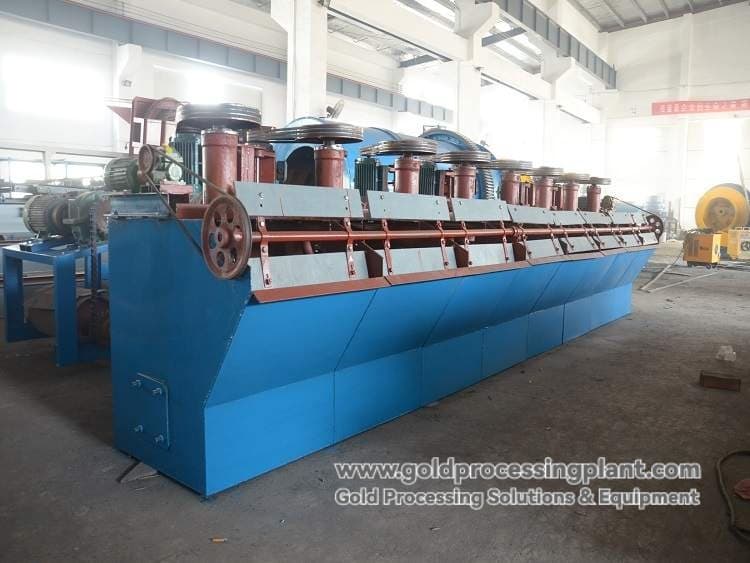

XJK flotation machine (A type) is a self-absorbing mechanical agitation flotation machine with a long history and the widest application in China's mineral processing industry. It originates from mature design, and after long-term production practice and technical optimization, with its remarkable features of simple structure, reliable operation, convenient operation and economic investment, it has become the preferred equipment for roughing and sweeping operations in large and medium-sized ore dressing plants, and is widely used in the sorting process of non-ferrous, ferrous, precious metals and non-metallic minerals.
Core working principle
XJK flotation machine realizes aerating and pulp circulation through mechanical agitation:
-
Stirring and suction: The high-speed rotating rubber impeller generates negative pressure in the cover chamber, which automatically sucks in air and stirs the slurry.
-
Mixing mineralization: air, slurry and chemicals are fully mixed in the impeller area, useful mineral particles are selectively adsorbed with air bubbles to form mineralization bubbles.
-
Separation and enrichment: the mineralized bubbles rise to the liquid surface to form a foam layer, which is scraped out by the scraper device, i.e. concentrate; hydrophilic veinstone minerals are left in the tank as tailings, thus realizing the separation of minerals.
Product Advantages and Features
-
Self-absorbing and self-flowing, simplified configuration: no external blower is required, air and slurry can be sucked in at the same time, simple process configuration and low infrastructure investment.
-
Wear-resistant core, long service life: the key components, impeller and cover plate, are made of high wear-resistant rubber, resistant to corrosion and abrasion, with long service life and low maintenance cost.
-
Stable operation and reliable indexes: after long-term practice verification, the selection technical indexes are stable, with high recovery rate and strong adaptability.
-
Simple operation and maintenance: classic structure, easy to understand and operate, low failure rate, simple daily maintenance.
-
Modular design, flexible layout: single tank is an independent unit, which can be flexibly combined in series or in parallel according to the treatment capacity and process needs to meet the needs of different scale of processing plants.
-
Economical and energy-saving: low overall energy consumption, economical operation cost and high return on investment.
Applicable fields
-
Non-ferrous metal mines: roughing and sweeping of copper, lead, zinc, nickel, molybdenum and other sulfide ores.
-
Ferrous metal ores: flotation separation of iron ore and manganese ore.
-
Precious metal ores: flotation recovery of gold and silver minerals.
-
Non-metallic ores: sorting and purification of phosphorite, fluorite, potash, graphite and so on.
Technical Parameter Table
| Model |
Tank volume (m³) |
Impeller diameter (mm) |
Processing capacity (m³/min) |
Main motor power (Kw) |
Scraper motor power (Kw) |
Weight of single tank (kg) |
| XJK-0.13 |
0.13 |
200 |
0.05～0.16 |
1.5 |
0.75 |
266 |
| XJK-0.23 |
0.23 |
250 |
0.12 to 0.28 |
3.0 |
0.75 |
389 |
| XJK-0.35 |
0.35 |
300 |
0.15～0.5 |
1.5 |
0.75 |
430 |
| XJK-0.62 |
0.62 |
350 |
0.3 to 0.9 |
3.0 |
1.1 |
630 |
| XJK-1.1 |
1.1 |
1.1 500 |
0.6～1.6 |
5.5 |
1.1 |
1300 |
| XJK-2.8 |
2.8 |
2.8 600 |
1.5~3.5 |
11.0 |
1.5 |
2325 |
Note: The above are common model parameters, special configurations are available upon request.
Our service and support
We not only provide equipment, but also provide you with a full range of solutions:
-
Process design: according to your ore characteristics (selectivity test report), we will design the optimal flotation process and configuration program for you.
-
Installation and commissioning: send experienced engineers to guide the installation and commissioning on site to ensure that the equipment reaches the best operating condition.
-
Technical training: provide customers with comprehensive training on equipment operation, maintenance and repair.
-
Spare parts supply: Long-term stable supply of original rubber impellers, covers and other wearing parts to ensure production continuity.
-
Process Optimization: Provide technical consulting and process optimization solutions for production problems to help improve the final selection indexes.
Why choose XJK flotation machine?
-
Classic and Reliable: Time-tested model, stable performance, time-tested "meritorious" equipment.
-
Economical and practical: low purchase cost, maintenance cost and operation cost, which makes it has a very high cost-effective investment.
-
Service guarantee: perfect technical support and service network to ensure that you have no worries.
-
Strong adaptability: it has good adaptability to all kinds of ores and is especially suitable as the main equipment to undertake the main sorting task.
