Drum Chute - High Efficiency Anti-Slabbing Alluvial Gold Processing Equipment
Product Overview

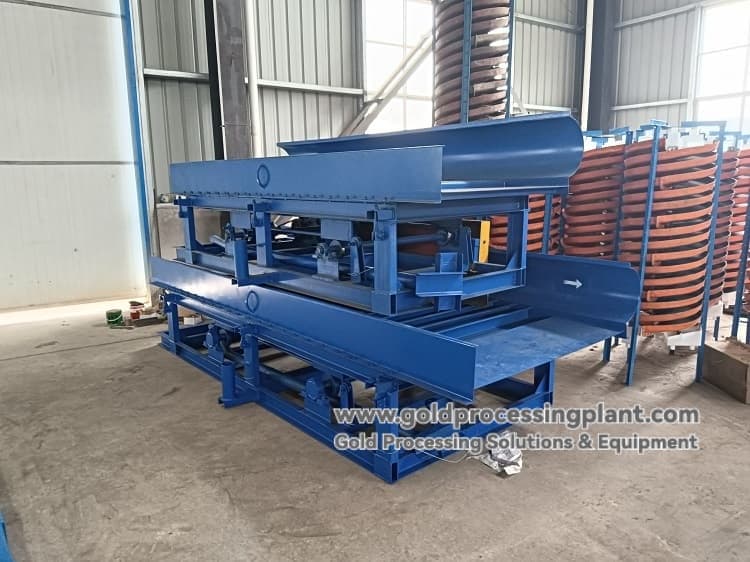

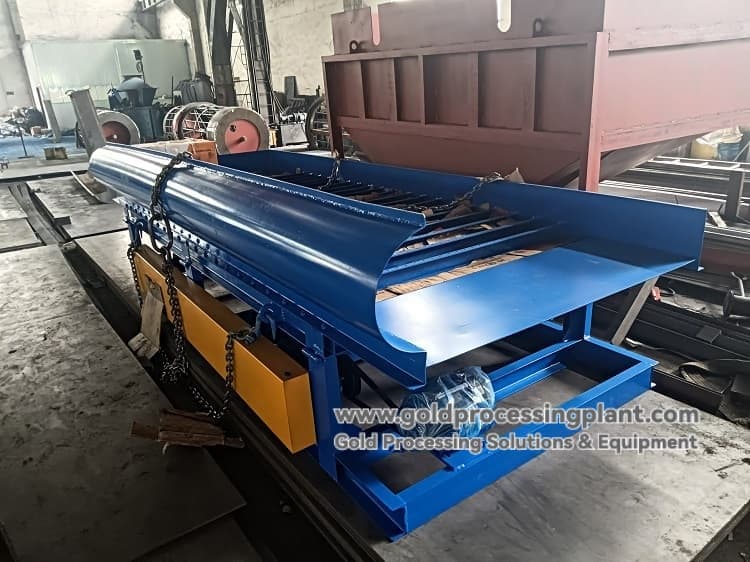

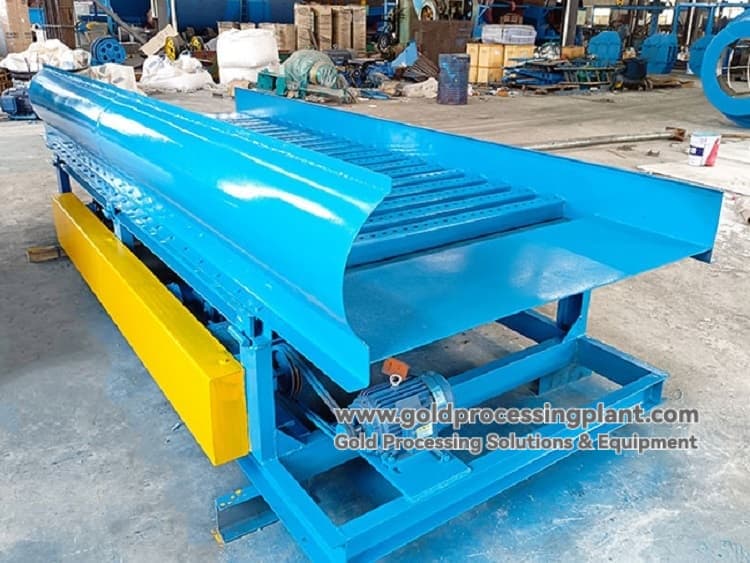

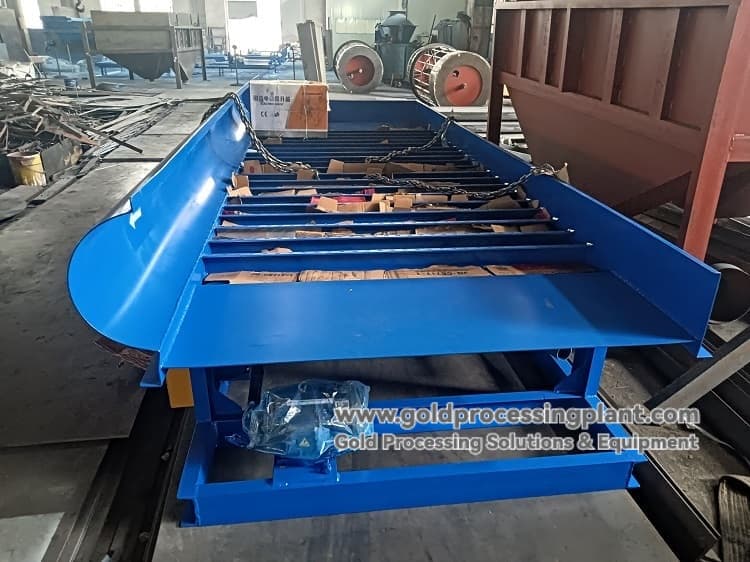

Drum Chute is a high efficiency gravity separation equipment designed for alluvial gold ore concentrating. It skillfully combines the advantages of high enrichment ratio of fixed chute and continuous loosening of jig bed, and through the innovative mechanical drumming design, it completely solves the technical problems of fixed chute, which is easy to slate, while maintaining the high-grade characteristics of concentrate. This equipment has extremely high enrichment ratio, which is tens to hundreds times higher than that of jigger, especially suitable for roughing and concentrating operation of alluvial gold ore, and it is an ideal choice for capturing fine gold particles in mobile gold panning vessel, stationary processing plant and tailings recovery system.
Core working principle

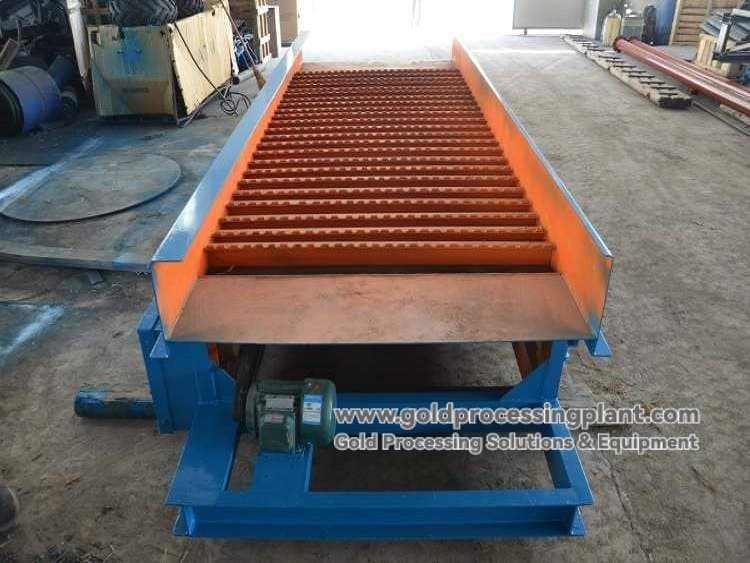

The slurry first enters the feed chute to buffer and distribute evenly, and then flows into the bed consisting of an angle steel chute. The heart of the plant lies in the eccentric drumming system that drives the natural rubber bottom plate in an up and down reciprocating motion:
-
Anti-slumping drum ming: The continuous drumming of the rubber base plate keeps the sedimentary layer loose, allowing light minerals to be discharged efficiently by eddy currents and elliptical holes, and heavy minerals (gold particles) to settle.
-
Highly efficient stratification and recovery: The design of the sliding lattice generates strong eddy currents, which, combined with the drumming force, promotes highly efficient stratification of minerals according to their specific gravity. Heavy minerals, such as gold, are captured at the bottom of the chute, while lighter minerals are discharged from the tailing with the slurry.
-
High Enrichment Ratio: By intermittently discharging high grade concentrate, a very high enrichment ratio is realized, greatly reducing the burden of subsequent selection.
Product Advantages and Features
-
Highly efficient anti-slabbing: The unique rubber bottom plate drumming mechanism fundamentally solves the problem of slabbing in the fixed chute and ensures a continuous and stable high recovery rate.
-
Extremely high enrichment ratio: small output rate of concentrate, high grade, enrichment ratio up to dozens to hundreds of times that of jigger, small amount of concentrate, easy for subsequent processing.
-
High recovery rate: the recovery effect is remarkable for micro-fine grain gold, especially flake gold, and the recovery rate is much higher than that of traditional fixed chute.
-

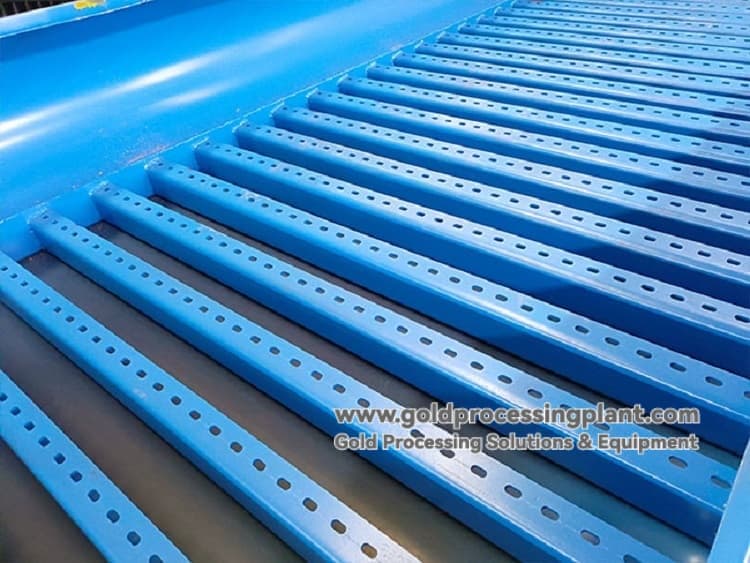

Simple and durable structure: Adopting natural rubber bottom plate and sturdy sliding lattice structure, wear-resistant, corrosion-resistant, adapting to harsh working conditions, low maintenance cost.
-
Energy-saving and flexible: low power consumption, can be fixed installation, but also perfectly adapted to various types of mobile gold panning equipment (such as gold panning boat, mobile gold panning machine), the installation angle can be adjusted.
-
Easy to operate: high degree of automation, regular ore discharge, low technical requirements for operators.
Applicable fields
-
Alluvial gold ore sorting: roughing and selecting operation of all kinds of alluvial gold ore.
-
Mobile recovery: core sorting unit of sand dredging gold panning ship and mobile gold panning equipment.
-
Stationary separation: the gold ore selection link in stationary gold panning plants and mineral processing plants.
-
Resource Recovery: Recovery of lost fine-grained gold from sand washing tailings and reelection tailings in sand quarries.
Technical Parameter Table
| Parameter and Model |
FGS-12 |
FGS-15 |
| Overall Dimension (mm) |
3200×1200×730 |
4000×1500×730 |
| Processing capacity (m³/h) |
20 - 25 |
30 - 35 |
| Feed size (mm) |
< 20 |
< 20 |
| Feed concentration (%) |
~30 |
~30 |
| Water consumption (m³/h) |
40 - 50 |
60 - 80 |
| Drumming frequency (times/minute) |
28 - 30 |
28 - 30 |
| Mounting inclination |
6° - 7 |
6° - 7° |
| Discharge cycle (hours) |
4 |
4 |
| Motor power |
Drive motor: 1.1 Kw
Lifting motor: 0.8 Kw |
Transmission motor: 2.2 Kw
Lifting motor: 0.8 Kw |
| Machine weight (kg) |
750 |
1100 |
Why choose Drum Chute?
-
Innovative technology integration: combining the advantages of both chute and jigger, the performance is much better than traditional equipment.
-
Fast return on investment: obtaining high gold recovery rate and enrichment ratio with low equipment and operation cost, with remarkable economic benefits.
-
Reliable and durable: designed for harsh working conditions, with low failure rate and strong continuous operation capability.
-
Flexible configuration: a variety of specifications are available, can be used as the main separation equipment, can also be used as a selection equipment, easily integrated into the existing production line.
