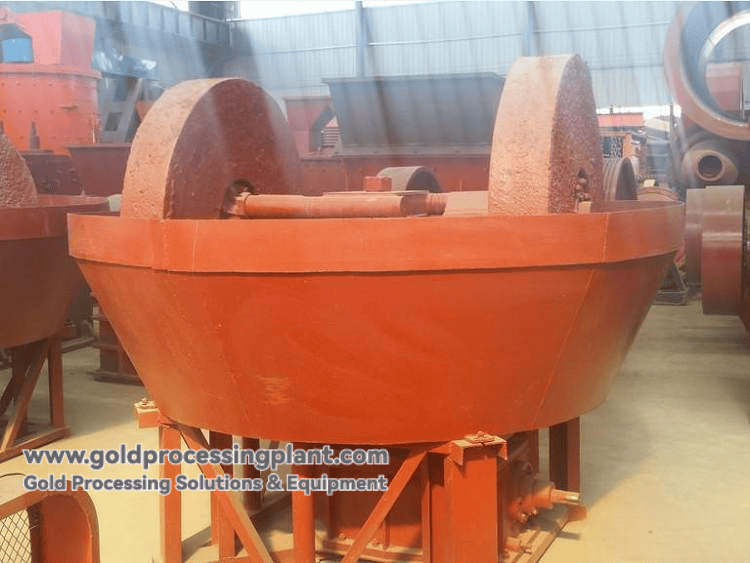

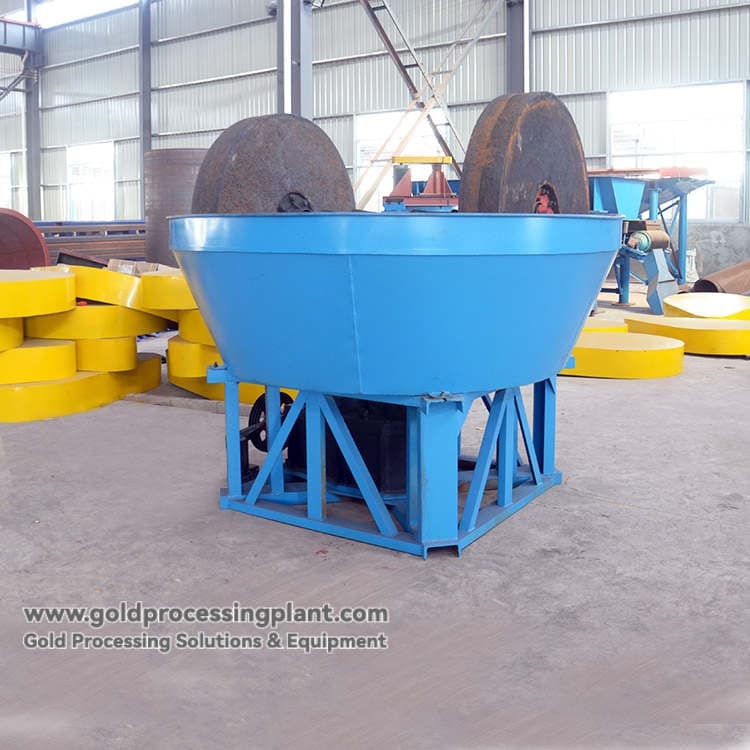

Gold Mill (Electric Mill / Wet Mill) Product Overview
Gold mill, also known as electric mill or wet mill, is a kind of high-efficiency equipment used for crushing, grinding or mixing materials with the core working parts of grinding wheel and milling disk. Our product has carried out comprehensive technical upgrading and structural optimization for the many pain points of traditional models, and has achieved significant improvement in reliability, ease of use and economy.
Comparison between the pain points of traditional equipment and the advantages of our products
| Problems of traditional equipment |
Improvement advantages of this gold mill |

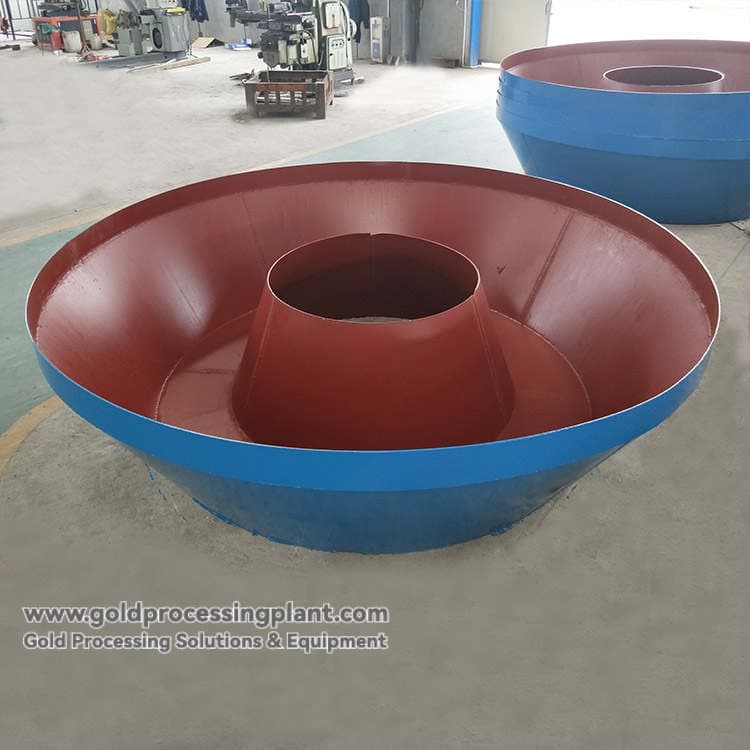

| Structural defects: the key components such as the frame and water basin are made of small and thin materials and are easily damaged. |
Sturdy and durable: Thickened, high-strength steel and reinforced structural design are used, with strong load resistance and greatly extended service life. |
| Low integration: the main machine is not equipped with motor and starting equipment, users need to purchase their own. |
Complete sets of supply: the whole machine is provided in complete sets, including matching motor and starting cabinet (can be configured according to customer requirements), truly "turnkey" project. |
| Cumbersome installation: due to the above reasons, the installation and commissioning cycle is long, affecting production. |
Rapid production: after the equipment to the site, only a simple foundation construction and connection, can be quickly installed and commissioned, the user can immediately put into production. |
| High maintenance cost: large lifting equipment is required for replacement and maintenance, which is time-consuming and costly. |
Convenient maintenance: Optimized design makes routine maintenance and replacement of wearing parts easier, significantly reducing the user's long-term maintenance costs and downtime. |
| Low energy efficiency: motor power matching is unreasonable, high energy consumption. |
Power optimization: the adoption of scientifically matched power system effectively reduces energy consumption while ensuring the processing capacity, making the operation more economical. |
Working Principle
The power is transmitted from the motor to the gearbox through the triangular belt, and after decelerating and increasing the torque by the gearbox, the roller is driven around the main shaft to make a clockwise rotation. The raw materials put into the water basin are crushed and rubbed by the gravity of the roller, and under the cyclic process of mixing - crushing - crushing - re-crushing, and are fully mixed and crushed until they reach the required fineness. Finally, the ground material is mixed with water to form slurry, which is discharged from the discharge port to complete the grinding operation.
Technical Parameter Table of Gold Milling Machine
| Model |
Specification (mm) |
Feeding size (mm) |
Processing capacity (t/h) |
Speed (r/min) |
Power (Kw) |
Weight (T) |
| GD1600 |
1600*400*200*500 |
>GD1600 |
4 |
20-22 |
30 |
14.5 |
| GD1500A |
1500*350*200*460 |
>30 |
3 |
20-22 |
22 |
13.3 |
| GD1500B |
1500*350*150*460 |
>30 |
2.5-3 |
20-22 |
22 |
12.3 |
| GD1500C |
1500*300*150*420 |
>30 |
2-2.5 |
20-22 |
22 |
11.3 |
| GD1400 |
1400*250*150*350 |
>30 |
1.5-2 |
16-18 |
18.5 |
8.5 |
| GD1300 |
1300*250*150*350 |
>30 |
1.5 |
21-23 |
15 |
7.5 |
| GD1200A |
1200*220*80*270 |
>30 |
0.9-1.2 |
16-18 |
7.5 |
5.5 |
| GD1200B |
1200*220*80*250 |
>30 |
0.8-1.0 |
21-23 |
7.5 |
5.5 |
| GD1100 |
1100*220*80*250 |
>30 |
0.6-0.8 |
16-18 |
7.5 |
5 |
| GD1000 |
1000*220*80*250 |
>30 |
0.5 |
21-23 |
7.5 |
5 |
| GD900 |
900*150*60*200 |
>30 |
0.3 |
17-19 |
5.5 |
4.5 |
Note: The above parameters are for reference only, the actual processing capacity may be slightly different due to the nature of materials (hardness, humidity, etc.) and process requirements.
Application field
It is widely used in the grinding operation of gold, silver, copper, lead, zinc, iron ore and other mineral processing plants, as well as the grinding and mixing of materials in building materials, chemical industry and other industries.
The gold mill produced by our company is a modernized milling equipment integrating high efficiency, durability and economy, which is dedicated to reducing the comprehensive cost and improving the production efficiency for users.
