Overview of Drum Ore Washing Machine

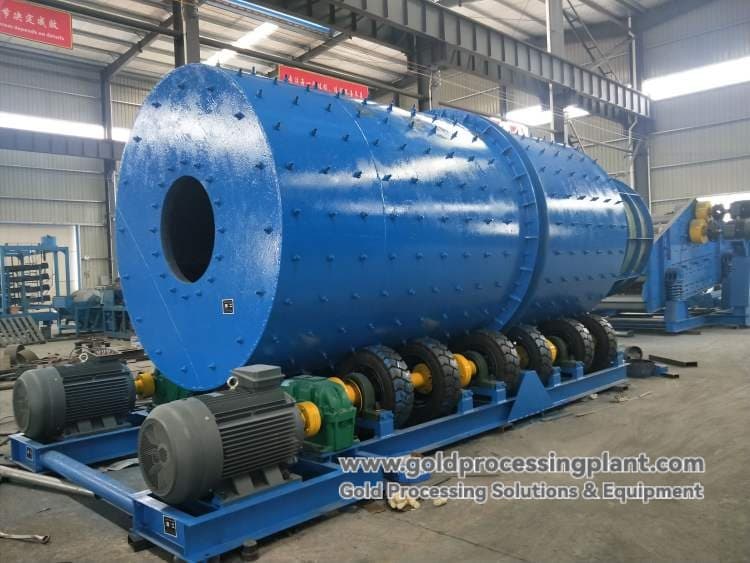

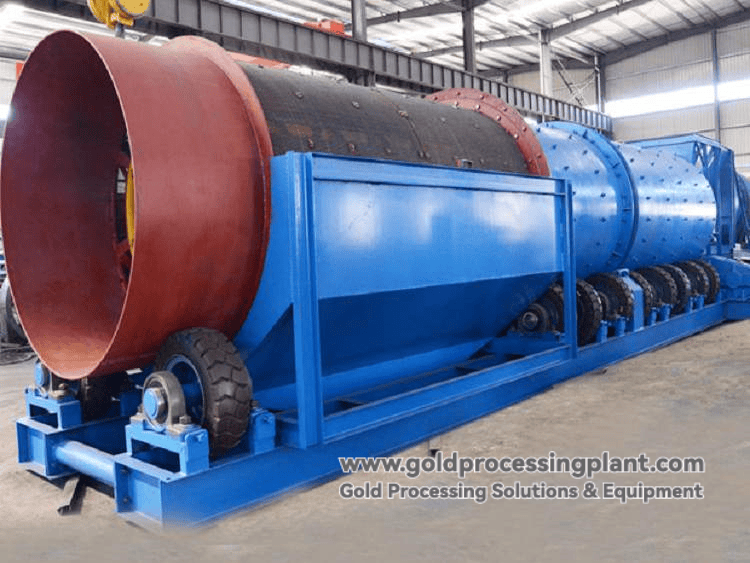

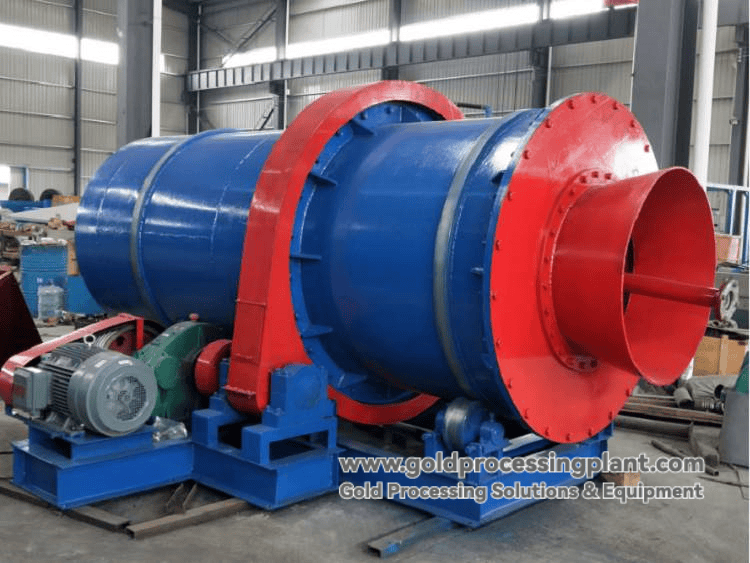

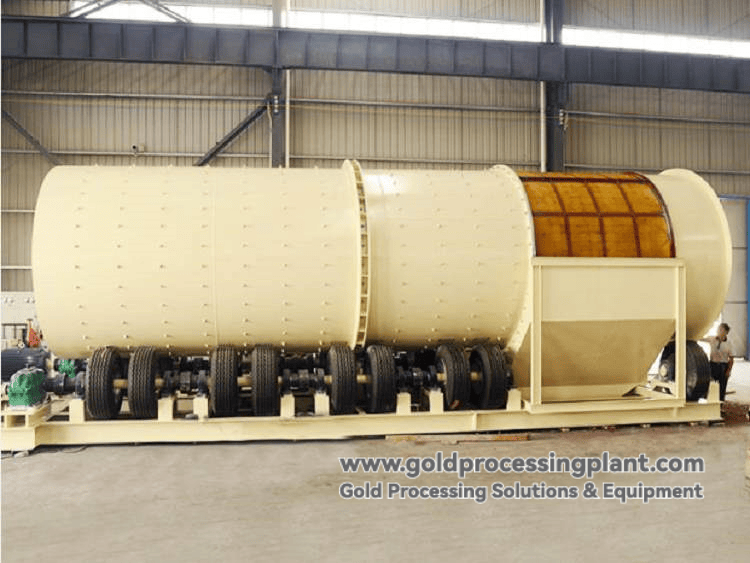

Drum trommel is a highly efficient, heavy-duty mine washing equipment, mainly used to process ores containing large amounts of clay, clayey silt or soft oxides. Its core working principle is a combination of mechanical scrubbing and high-pressure water flushing.
It passes through a long slowly rotating cylinder, so that the material is fully mixed, tumbled and rubbed with water inside the cylinder. The cylinder is usually equipped with a scraper or lifting plate, while the pebbles and rocks contained in the material itself are used as a medium to effectively break down the clay clumps, crush the soft oxides and clean the mineral surfaces in the violent churning, so as to dissociate the valuable minerals from the viscous impurities.
The washed slurry overflows from the end of the cylinder and enters into the matching conical screen for preliminary screening, and after removing the oversized particles, the qualified slurry can be sent to the downstream beneficiation equipment (e.g. centrifugal concentrator, spiral chute, jigger, etc.) for further sorting.
Advantages and features of drum trommel
-
Strong processing capacity and high washing efficiency: the huge cylinder volume and strong mechanical action make it able to process viscous ores on a large scale.
-
Extremely high washing degree: the long cylinder design ensures that the materials have enough residence time to be fully dispersed and thoroughly cleaned.
-
Sturdy and durable structure: the cylinder body is made of thickened steel plate and equipped with heavy-duty bearings, gears and pallets, which can withstand heavy loads and harsh working conditions.
-
Strong power and stable operation: High-power motor and gear system provide efficient torque to ensure smooth rotation of the cylinder, handling large materials without worry.
-
Strong self-cleaning ability: Built-in high-pressure flushing water system continuously flushes the inner wall of the cylinder, effectively preventing sticking wall clogging.
-
Wide range of feed size: It can handle materials with a maximum size of 230mm, which reduces the pressure of the pre-crushing process.
-
Customizable design: its maximum diameter can be up to 3.2 meters, and its length can be customized according to the processing requirements, with high flexibility.
Main technical parameters of drum washing machine
| Model |
Cylinder size (m) |
Screen size (mm) |
Feeding size (mm) |
Water pressure (Mpa) |
Water consumption (M³/t) |
Processing capacity (T/h) |
Rotating speed (r/min) |
Power (Kw) |
Weight (Kg) |
| RXT1030 |
Φ1.0×3.0 |
≥5 |
≤100 |
0.4～0.5 |
1.5～4 |
30～50 |
25～28 |
15 |
4,800 |
| RXT1230 |
Φ1.2×3.0 |
≥5 |
≤100 |
0.4～0.5 |
1.5～4 |
50～70 |
23～25 |
18.5 |
5,800 |
| RXT1545 |
Φ1.5×4.5 |
≥5 |
≤150 |
0.4～0.5 |
1.5～4 |
70～120 |
18～22 |
30 |
6,900 |
| RXT1560 |
Φ1.5×6.0 |
≥5 |
≤150 |
0.4～0.5 |
1.5～4 |
80～130 |
18～22 |
37 |
8,300 |
| RXT1845 |
Φ1.8×4.5 |
≥5 |
≤170 |
0.4～0.5 |
1.5～4 |
90～130 |
20～21 |
45 |
11,800 |
| RXT1860 |
Φ1.8×6.0 |
≥5 |
≤170 |
0.4～0.5 |
1.5～4 |
100～140 |
20～21 |
45 |
12,800 |
| RXT2060 |
Φ2.0×6.0 |
≥5 |
≤210 |
0.4～0.5 |
1.5～4 |
120～160 |
19～20 |
55 |
14,800 |
| RXT2265 |
Φ2.2×6.5 |
≥5 |
≤230 |
0.4～0.5 |
1.5～4 |
160～180 |
19～20 |
55 |
16,500 |
Note: RXT2265 is the model with the largest capacity and can handle the largest feed size in the list. This series of equipment can be customized according to the demand, the maximum diameter of the cylinder can be up to 3.2 meters, and the length is not limited.
Drum trommel is the key equipment for processing hard-to-wash ores. With its powerful scrubbing force, huge processing capacity and sturdy structure, it plays an irreplaceable role in the industries of iron ore, manganese ore, tungsten ore, tin ore and sand and gravel aggregate cleaning. Its modular model design can meet the needs of different scales and material characteristics of ore washing.
