Product Details

Product Overview

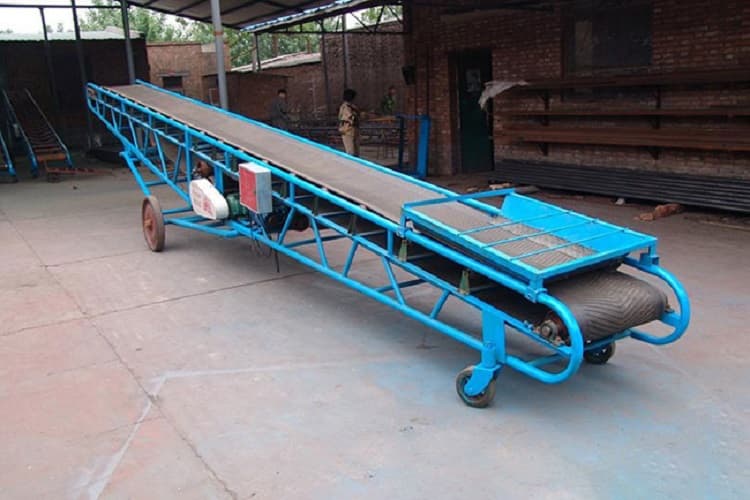

The belt conveyor adopts cycloid reducer as the driving device, featuring reliable operation and convenient maintenance. This equipment is suitable for conveying raw coal, slag, salt, raw materials of sand factory, grain, ore and various lumpy and granular bulk materials with the specific gravity of 0.5~2.5T/M³ at room temperature.

The belt conveyor produced by our company has the advantages of large conveying capacity, simple structure, convenient maintenance, standardization of components, etc. It is widely used in mining, metallurgy, chemical industry, etc. It can be used for conveying loose materials or pieces of goods. According to the requirements of conveying process, it can be used as a single unit or a combination of multiple units, and it can also be matched with other conveying equipment to form horizontal or inclined conveying system, to meet the needs of different arrangements of the line.

Belt conveyor technical parameters

Belt width(mm)	Belt length(m)	Power(KW)	Conveying speed(m/s)	Conveying capacity(t/h)
500	≤12	3	1.3-1.6	78-191
	12-20	4-5.5
	20-30	5.5-7.5
650	≤12	4	1.3-1.6	131-323
	12-20	5.5
	20-30	7.5-11
800	≤6	4	1.3-1.6	278-546
	6-15	5.5
	15-30	7.5-15
1000	≤10	5.5	1.3-2.0	435-853
	10-20	7.5-11
	20-40	11-22
1200	≤10	7.5	1.3-2.0	655-1284
	10-20	11
	20-40	15-30
