Log Washer

Product Overview.

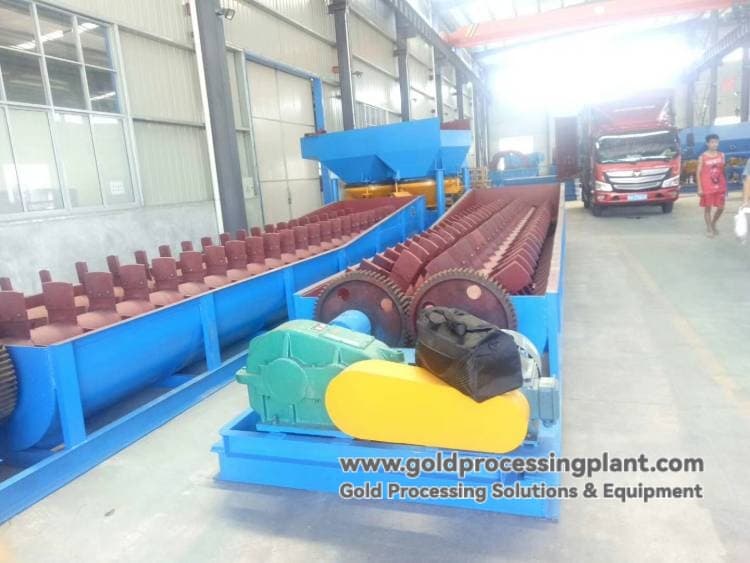

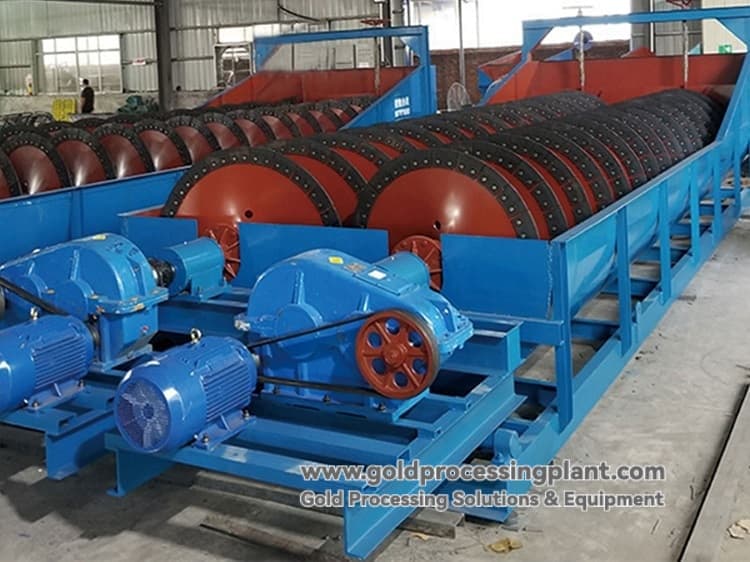

Double Screw Scrubber is an efficient and reliable mineral cleaning equipment, designed for processing clayey minerals with strong adhesion. It effectively separates the soil, dust and impurities adhering to the surface of minerals through the strong mixing, scrubbing and rinsing of the spiral blades, and significantly improves the grade of minerals. This equipment is especially suitable for cleaning manganese ore, iron ore, phosphorus ore and other low-grade minerals, with a large processing capacity, high washing degree, stable operation, easy to operate and other outstanding advantages, is the key equipment for mineral pretreatment and resource utilization.

Working Principle

1. Feeding and water injection: Mud-containing minerals are fed from the front end of the washing tank, and high-pressure rinsing water is injected at the same time.

2. Powerful scr ubbing: The reducer drives two spiral shafts to rotate in opposite directions. The spiral blades installed on the shafts stir, knead and scrub the minerals strongly, so that the mineral particles and soil are fully dissociated.

3. Separation and overflow: under the action of washing water, the mud and sewage with light specific gravity are discharged from the overflow weir at the end of the tank.

4. Lifting and discharging: the washed heavy minerals are lifted up along the inclined bottom of the trough under the push of the spiral blades, and finally discharged from the discharge opening at the front end of the washing trough, realizing the complete separation of mud and minerals.

Core advantages and features

• ⚡ Efficient and powerful washing: the design of relative rotation of the double spiral produces powerful stirring and scrubbing force, which can effectively break the clay clumps, and the washing effect is far better than that of the single spiral equipment, which is excellent for the treatment of stubborn sticky mud.

• 📦 Ultra-large processing capacity: optimized tank volume and spiral design ensure that the equipment can process raw materials continuously and in large quantities to meet the needs of large-scale production.

• 🛡️ Robust and reliable operation:

  • Heavy-duty structure: the spiral blade, main shaft and trough body are all made of wear-resistant steel plate or liner, which is wear-resistant and has a long service life.

  • Stable transmission: it adopts direct drive of reducer, which makes the power transmission smooth and reliable, and can withstand heavy load and bad working conditions.

• 🔧 Easy operation and maintenance:

  • Easy to install: compact structure, simple foundation, easy for on-site installation and layout.

  • High degree of automation: continuous operation, only need to control feeding and water supply, low labor cost.

  • Few maintenance points: simple core transmission structure, low daily maintenance workload.

• 💧 Water conservation and environmental protection: recycled water system can be used to reduce the consumption of fresh water; the mud water from washing can be treated by the supporting sedimentation tank or thickener to reduce the impact on the environment.

• 💰 Economical and practical: low investment and operating costs, but can significantly improve the mineral grade, creating favorable conditions for subsequent sorting operations, high return on investment.

Applicable materials and scenes

• Main minerals: manganese ore, iron ore, phosphorus ore, tin ore, gold ore and other metal and non-metal minerals that need to be washed and deslimed.

• Core application:

  • Raw Ore Pretreatment: Cleaning the mud attached to the surface of the ore particles, improving the grade into the mill or into the selection, and reducing the load of the subsequent operation.

  • Tailings re-processing: recover valuable minerals from old tailings ponds for cleaning and enrichment.

  • Construction Aggregate Cleaning: Cleaning the soil and impurities in sand and gravel materials, and upgrading the product grade.

  • Chemical raw material processing: cleaning industrial minerals that need to remove impurities.

Why choose our spiral washing machine?

• Tailor-made: We can recommend the most suitable spiral diameter, length and speed according to your material characteristics (viscosity, particle size, mud content) and capacity requirements.

• Wear-resistant solutions: For high abrasion conditions, we offer a wide range of wear-resistant options such as high manganese steel blades, wear-resistant liners, etc., which greatly extend the service life of the equipment.

• One-stop service: We provide a full range of services from program design, equipment manufacturing, installation guidance to commissioning and operation to ensure that the equipment achieves the best results.

• Excellent price-performance ratio: under the premise of ensuring high quality and reliability, we provide competitive prices to bring you a higher return on investment.

Technical Parameters
