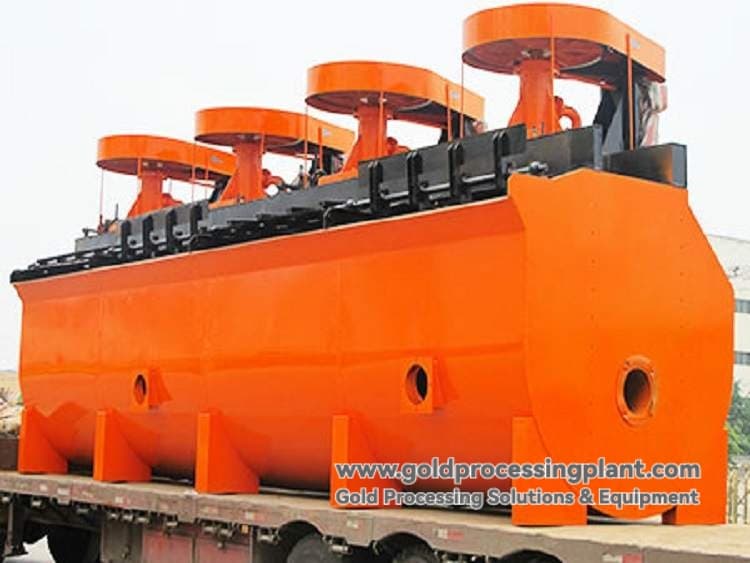

BS-K type flotation machine overview
Model BS-K flotation machine is a highly efficient and energy-saving inflatable mechanical agitation flotation equipment. It combines the advantages of external forced inflation and mechanical agitation, and through the innovative side-mounted spindle design and "U" shaped tank structure, it significantly improves the stability of the equipment operation and separation efficiency. This equipment is designed to meet the high requirements for fine separation of concentrate grade and recovery, and its recovery can be increased by more than 2% compared with the conventional equipment, which is an ideal choice for the production of high-quality concentrates.
BS-K type flotation machine working principle
The working process of BS-K flotation machine is a precise combination of mechanical force and aerodynamics:
-
Synergistic inflation and mixing: the external blower provides a stable and adjustable air source, while the conical impeller rotates at high speed to generate strong turbulence, realizing the forced mixing and uniform dispersion of air and slurry.
-
Mineral Separation: Under the strong turbulence environment, the hydrophobic minerals fully collide and attach with the fine, uniform air bubbles generated by the radial stator cutting to form mineralized air bubbles.
-
Mineral slurry flow: adopting step configuration, utilizing the self-weight of mineral slurry to form self-flow, passing through each flotation tank in turn.
-
Foam collection and stabilization: the mineralized bubbles float to form a stable foam layer, which is scraped out by the scraper. Part of the mineralized foam in the concentrating zone can be returned to the previous tank for re-election through the foam pump to improve the recovery rate." The "U" shaped tank structure helps to form a stable separation environment.
Core Advantages and Features of BS-K Flotation Machine
| Structural Advantages |
Performance Advantages |
| ✅ Side-hanging spindle design: the transmission mechanism is hung sideways, good verticality, smooth operation and sufficient space for maintenance. |
✅ Extremely high recovery rate: optimized aerating and mixing system increases the recovery rate of useful minerals by more than 2%. |
| ✅ "U"-shaped tank structure: effectively prevent the accumulation of ore at the bottom of the tank, ensure that the ore particles are fully suspended, avoid dead zones and reduce metal loss. |
✅ Good separation effect: the bubbles are dispersed uniformly and finely, and the mineralization efficiency is high, which is conducive to obtaining high-grade concentrate. |
| ✅ Modular and adjustable design: provide single to six tanks with various configurations, adjustable transmission parts , convenient maintenance and repair. |
✅ Stable operation and low energy consumption: designed for high efficiency operation, it ensures strong performance while controlling energy consumption. |
| ✅ Highly efficient impeller-stator system: the combination of conical impeller and radial stator provides strong mixing force and greatly reduces wear and tear, resulting in a long service life. |
✅ Strong adaptability: especially suitable for fine sorting and difficult to sort ores, insensitive to fluctuations in feed volume and concentration. |
BS-K type flotation machine main technical parameters table
| Model |
Effective volume (m³) |
Processing capacity (m³/min) |
Impeller speed (r/min) |
Aerating volume (m³/m²-min) |
Mixing motor power (kw) |
Weight of single tank (kg) |
| BS-K2.8 |
2.8 |
0.4～3 |
248 |
2～3 |
5.5 |
1750 |
| BS-K4 |
4 |
0.5～4 |
220,230 |
3～6 |
7.5 |
2568 |
| BS-K6 |
6 |
1.0～6.0 |
197 |
4～10 |
15 |
3570 |
| BS-K8 |
8 |
1.0～8.0 |
180 |
4～10 |
15 |
4539 |
| BS-K16 |
16 |
2.0～15 |
2.0～15 |
6～15 |
30 |
8131 |
| BS-K24 |
24 |
7 to 20 |
154 |
8 to 18 |
37 |
9546 |
| BS-K38 |
38 |
10 to 30 |
141 |
10 to 20 |
45 |
11107 |
| BS-K40 |
40 |
10 to 33 |
138 |
12 to 22 |
55 |
17000 |
| BS-K50 |
50 |
12～40 |
120 |
14～24 |
75 |
22000 |
| BS-K70 |
70 |
13 to 50 |
110 |
16～26 |
90 |
26200 |
Note: This equipment needs to be used with matching blower (see original table for air pressure requirement) and foam pump. Starting from BS-K16, the processing capacity of the equipment has jumped up, and it is suitable for concentrating and sweeping operations in large-scale mineral processing plants.
Application Areas
The BS-K flotation machine is designed for high-quality, high-efficiency sorting requirements and is mainly used in:
-
Fine separation operations: to produce high grade final concentrates.
-
Non-ferrous metal concentrating: such as copper, lead, zinc and other minerals in the concentrating section.
-
Rare metal recovery: such as lithium pyroxene, beryllium ore and other minerals with high value and fine particle size sorting.
-
Non-metallic mineral sorting: such as fluorite, barite, graphite and other high-purity purification.
Professional Service Support
-
Process design: provide professional step configuration and foam pump return program design.
-
Installation and commissioning and training: professional technical team on-site guidance for installation and commissioning, and provide comprehensive operation training.
-
Parts supply: guarantee the supply of original high-quality wear-resistant parts (impeller, stator, etc.).
-
Optimization of indicators: Provide optimization of process parameters to help achieve maximum recovery and concentrate grade.
BS-K flotation machine represents the technological frontier of inflatable flotation machine, which realizes high recovery rate and stable performance beyond the conventional equipment through the perfect combination of external forced inflation and high-efficiency mechanical agitation. Although its configuration is relatively complex (requiring step arrangement and froth pumps), its excellent performance in fine separation and difficult ore processing makes it the preferred high-end equipment for users who pursue the ultimate beneficiation indexes and maximize economic benefits.
