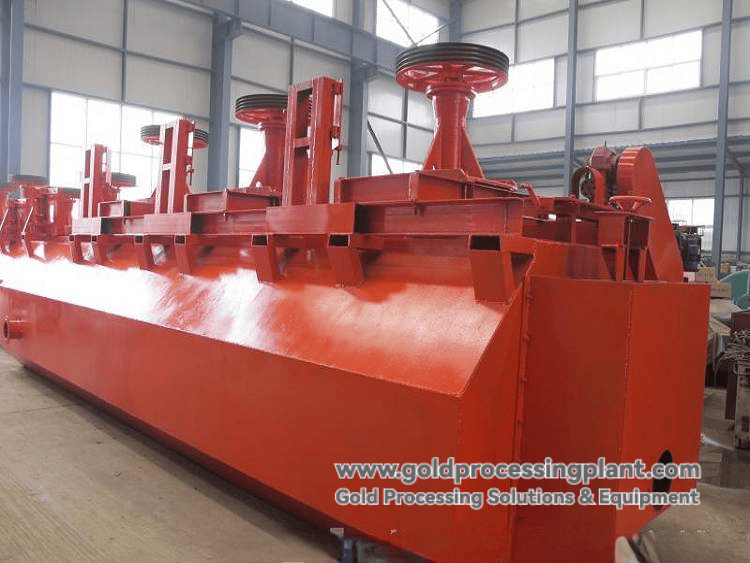

JJF type flotation machine overview
Model JJF flotation machine is a highly efficient and energy-saving self-absorbing mechanical agitation flotation equipment. It effectively solves the problems of sinking tanks and stopping and having to discharge the ore that traditional flotation machines are prone to through the innovative design of false bottom and deflector pipe. With its excellent performance of smooth liquid level, stable foam layer, high recovery rate and low energy consumption, this equipment is especially suitable for forming a joint unit with SF type flotation machine to provide efficient and reliable flotation solutions for mineral processing plants.
Working Principle of JJF Flotation Machine
The working process of JJF flotation machine is an efficient gas-liquid-solid three-phase mixing and separation process:
-
Air-slurry mixing: when the cylindrical impeller rotates, with the cooperation of the special circulating channel formed by the guide tube and false bottom, the air is inhaled and the slurry is inhaled from the bottom at the same time, so as to realize full mixing.
-
Slurry Circulation: The deflector tube guides the slurry to form a good internal circulation, which ensures the suspension of particles and prevents sedimentation.
-
Mineral Separation: Under agitation and bubbling, hydrophobic (water-repellent) minerals selectively attach to the bubbles and float up to form a foam layer; hydrophilic minerals remain in the slurry.
-
Foam stabilization: The umbrella-shaped dispersion cover separates the flotation area from the agitation area, effectively stabilizing the liquid level and the foam layer and facilitating the scraping out of the concentrate.
-
Horizontal Configuration: When working with SF type flotation machine, horizontal configuration can be realized, and the pulp flows by the pumping ability of the equipment itself, without the need of height difference and foam pump.
Core advantages and features of JJF type flotation machine
| Structure Advantage |
Performance Advantages |
| ✅ Innovative false bottom and deflector design: fundamentally prevents the pulp from settling, no need to drain the ore when stopping, easy to operate and maintain. |
✅ High recovery rate: the recovery rate can be increased by 1-2% compared with ordinary flotation machine, with better separation effect. |
| ✅ Cylindrical impeller: shallow submergence depth, low circumferential velocity, good wear resistance and long service life. |
✅ Low energy consumption and large processing capacity: optimized structural design significantly reduces power consumption while ensuring performance. |
| ✅ Umbrella-shaped dispersing cover: effectively stabilize the liquid level, ensure the foam layer is smooth, facilitate the secondary enrichment and improve the concentrate grade. |
✅ Easy operation and low maintenance cost: no worries about sinking tanks, long service life of parts and components, low comprehensive operation cost. |
| ✅ Joint unit configuration: perfectly matched with SF type flotation machine (inhalation tank), used as a DC tank, forming a horizontal configuration of the flotation process, without the need for drop and froth pump, simplifying the process, saving investment and space. |
|
JJF type flotation machine main technical parameters table
| Model |
Tank volume (m³) |
Impeller diameter (mm) |
Production capacity (m³/min) |
Main motor power (kw) |
Overall dimension (L×W×H mm) |
Weight of single tank (kg) |
| JJF-1 |
1 |
280 |
0.3～1 |
5.5 |
1400×1400×650 |
1230 |
| JJF-2 |
2 |
280 |
0.5～2 |
7.5 |
1400×1400×1150 |
1437 |
| JJF-3 |
3 |
350 |
1~3 |
11 |
1500×1850×1200 |
1740 |
| JJF-4 |
4 |
410 |
2～6 |
11 |
1600×2150×1250 |
2100 |
| JJF-5 |
5 |
410 |
2～6 |
11 |
1600×2150×1550 |
2300 |
| JJF-8 |
8 |
540 |
4～10 |
22 |
2200×2900×1400 |
4500 |
| JJF-10 |
10 |
540 |
4～12 |
22 |
2200×2900×1700 |
4800 |
| JJF-16 |
16 |
700 |
5～16 |
37 |
2850×3800×1600 |
8000 |
| JJF-20 |
20 |
730 |
5～20 |
37 |
2850×3800×2000 |
8500 |
Note: The power of matching agitation motor is not listed in the table. Starting from JJF-8, the tank volume and processing capacity are greatly increased, which is suitable for medium and large-scale mineral processing plants.
Application Programs and Services
Typical application program: SF/JJF combined unit
-
SF type flotation machine as suction tank: it is arranged in the first part of the unit and utilizes its strong self-priming ability to suck in the ore slurry from the front channel.
-
JJF type flotation machine as DC tank: horizontally connected in series at the back, the pulp flows naturally by liquid level difference, forming a highly efficient and energy-saving flotation production line.
-
Advantages: compact configuration, no need for height difference and complicated froth pump system, low energy consumption, easy operation and management.
Professional service support:
-
Joint unit design: provide optimized SF/JJF configuration scheme.
-
Installation, commissioning and training: professional team on-site service and provide complete operation and maintenance training.
-
Parts supply: Provide original wear parts (e.g. impeller, stator, bushings, etc.) to ensure equipment performance.
-
Process Optimization: Provide recovery rate improvement and technical transformation solutions.
With its unique structural design, excellent performance indexes and perfect compatibility with SF type flotation machine, JJF type flotation machine has become one of the preferred equipments in modern flotation plants, especially in large and medium-sized ore dressing plants requiring high efficiency, energy saving and stable operation. It represents an important direction in the development of mechanical agitation flotation machine technology, and is a reliable guarantee to enhance the economic benefits of mineral processing.
