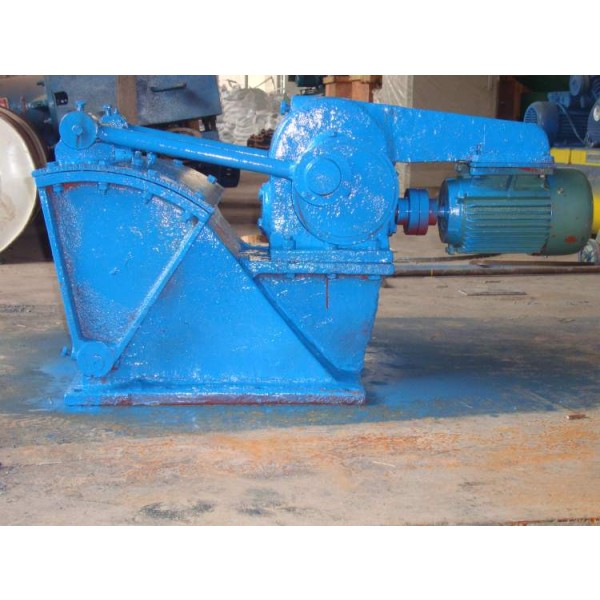

Pendulum feeder is a kind of feeding equipment designed for ball mill and ore collecting belt conveyor. This equipment is widely used because of its simple structure, convenient operation, low energy consumption, and the ability to realize uniform and adjustable feeding volume control.
Pendulum feeder is suitable for crushing and screening process in many industries, such as abrasive, metallurgy, coal mine, mineral processing, building materials, chemical industry, etc. It can transport lumpy and granular materials from the storage bin to the receiving device evenly, regularly and continuously. In the sand and gravel production line, it can provide continuous and uniform feeding for crushing machinery and coarse screening for materials, especially suitable for batch feeding of small materials from the silo, and it is the ideal choice for ball mill feeding and conveyor feeding. This equipment has simple structure, economic price, convenient operation and maintenance, and can be used in the pilot plant and small and medium-sized mineral processing plant for production operations.
Stable operation: stable vibration, reliable operation and long service life.
Convenient adjustment: the excitation force can be adjusted, the flow rate can be changed and controlled at any time, the adjustment is convenient and stable.
High efficiency and energy saving: adopting vibration motor as the excitation source, low noise, low power consumption, excellent adjustment performance, no material rushing phenomenon.
Structural optimization: simple structure, reliable operation, easy installation and adjustment, light weight, small volume, easy maintenance.
Environmental protection design: closed structure body can effectively prevent dust pollution.
| Model | Inlet(mm) | Discharge port(mm) | Oscillation stroke(mm) | Oscillation frequency(times/min) | Maximum feed size(mm) | Handling capacity(t/h) | Power(kw) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|
| 300×300 | 300×300 | 300×125 | 0~90 | 68 | 100 | 2-5 | 1.5 | 213 |
| 400 x 400 | 400×400 | 400×50~150 | 0~170 | 47 | 35 | 3-8 | 2.2 | 272 |
| 600 x 600 | 600×600 | 600×150~150 | 0~206 | 45.5 | 50 | 7-12 | 3 | 558 |
| 750 x 750 | 750×750 | 600×450 | 50-200 | 35 | 65 |
