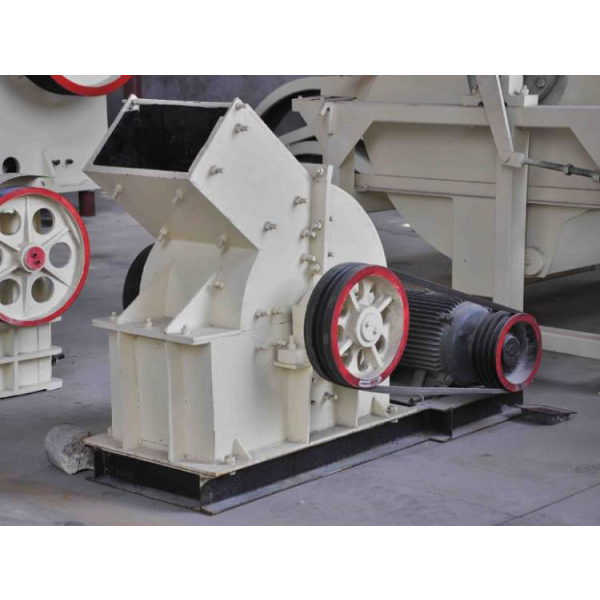

Hammer Crusher Overview
Hammer crusher is a kind of equipment that utilizes high-speed rotating hammer head to impact, collision, shearing and grinding on materials to realize crushing. It has the remarkable features of simple structure, large crushing ratio (up to 10-25), high production efficiency, and can be used in both dry and wet operation forms.
Ring hammer crusher is widely used in mining, cement, coal, metallurgy, building materials, highway, combustion chemical and other industries for medium and fine crushing of medium hardness and brittle materials. By adjusting the gap of the lower castor, the discharge size can be flexibly changed to meet the diversified needs of different users.
Hammer crusher working principle
The electric motor drives the rotor to rotate at high speed in the crushing chamber. After the material enters the machine from the upper feeding port, it is immediately crushed by the combined effects of striking, impacting, shearing and grinding of the high-speed hammer head.
In the lower part of the rotor, there is a sieve plate (castor). In the crushed material, particles smaller than the size of the screen hole are discharged through the gap of the screen plate under the action of the hammer head and become qualified products; coarse particles larger than the size of the screen hole are blocked on the screen plate, and continue to be struck by the hammer head repeatedly and grinding, until they are finally crushed and discharged through the screen plate.
Applicable materials and scope
-
Applicable materials: medium hard and brittle materials with compressive strength not exceeding 100MPa and water content less than 15%.
-
Typical materials: coal, salt, chalk, gypsum, masonry, limestone and so on.
-
Special application: It can also be used for crushing materials with strong fiber structure, elasticity and toughness, such as broken wood, paper, or recycling asbestos fibers from asbestos cement waste.
-
Application production line: It can be used not only in crushing production line and sand making production line, but also can replace cone crusher in mineral processing production line.
Advantages and features of hammer crusher
-
Structural advantages: simple structure, compact size, low deadweight, low power consumption per unit product.
-
Performance advantages: high productivity, large crushing ratio, small and uniform product size, mostly cubic shape, less over-crushing phenomenon.
-
Maintenance advantages: continuous and reliable work, easy maintenance and repair, easy to check and replace the wear parts (such as hammer head, castor bar).
Hammer crusher main technical parameters table
| Model |
Rotor speed (r/min) |
Maximum feed size (mm) |
Discharge size (mm) |
Capacity (t/h) |
Power (kw) |
Weight (t) |
Overall dimension (L×W×H mm) |
| PC400×400 |
1500 |
100 |
0-30 |
5-8 |
7.5 |
0.9 |
844×942×878 |
| PC600×400 |
1000 |
100 |
0-35 |
10-12 |
18.5 |
1.03 |
1054×972×1117 |
| PC600×600 |
1000 |
100 |
0-35 |
12-18 |
45 |
2.14 |
1315×840×1501 |
| PC800×600 |
1000 |
120 |
0-45 |
20-25 |
55 |
2.45 |
1515×2586×1040 |
| PC800×800 |
1000 |
120 |
0-45 |
35-45 |
55 |
3.05 |
1515×2831×1040 |
| PC1000×800 |
1000 |
200 |
0-45 |
25-40 |
110 |
6.5 |
3206×2210×1515 |
| PC1000×1000 |
1000 |
200 |
0-45 |
40-80 |
132 |
7.59 |
3514×2230×1515 |
| PC1250×800 |
750 |
200 |
0-45 |
20-50 |
132 |
11.7 |
2630×1780×2050 |
| PC1250×1250 |
750 |
200 |
0-45 |
90-110 |
185 |
13.2 |
2630×2180×2050 |
| PC1400×1400 |
750 |
250 |
0-45 |
120-170 |
280 |
17.2 |
2790×2800×2310 |
| PC1600×1600 |
600 |
350 |
0-60 |
220-280 |
450 |
22.8 |
3350×3120×2660 |
Note: PC1250×1250 and PC1600×1600 are the models with larger processing capacity in the list, among which PC1600×1600 is the model with the largest specification and the strongest processing capacity, which is suitable for large production line.
Hammer crusher occupies an important position in the crushing field with its high efficiency, flexibility and economy. Its core advantage lies in high crushing ratio and controllable product size, which can directly crush large materials to the required size at one time and simplify the process. Users can choose the suitable model from the above table according to the production scale and the requirements for the feeding and discharging granularity and capacity.
