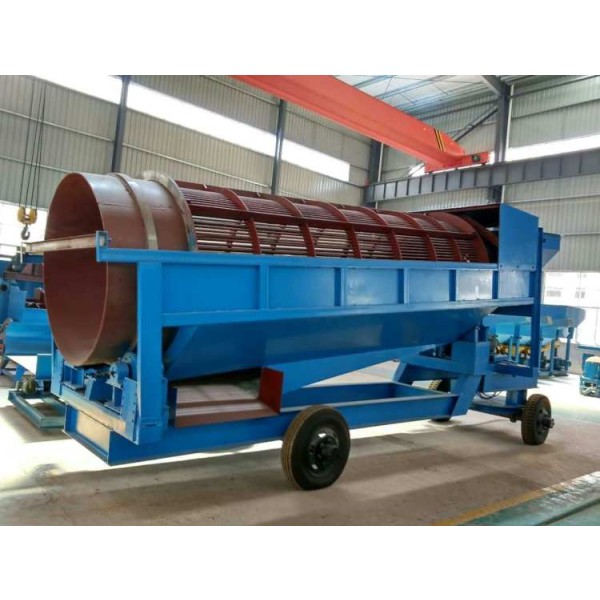

Mobile Drum Washing Plant

Mobile Trommel Screen - Flexible and Efficient Alluvial Gold Beneficiation Platforms

Product Overview

Mobile trommel screen is a fully mobile beneficiation platform that integrates screening, washing and gold processing functions. It is designed for small and medium-sized alluvial gold mines that require frequent turnarounds, and is highly mobile and flexible. It integrates a full set of systems such as silo, trommel screen, generator, water pump, sticky gold chute, etc. It does not need complex installation, and can be quickly put into production when it arrives at the site, with the characteristics of low investment, quick effect, simple operation and strong adaptability, etc. It is the ideal equipment for alluvial gold ore and river sand beneficiation.

Core working principle

The material enters the rotating drum screen cylinder from the material bin, and is screened and scrubbed under the water flow. The fine-grained materials (including gold sand) smaller than the screen holes fall through the screen holes into the bottom of the sticky gold tank, which is covered with professional polyethylene non-woven sticky gold blanket, which can efficiently capture the gold particles (including fine-grained gold). Large gravels and debris are discharged from the end with the drum rotation, thus realizing the integrated operation of screening and preliminary enrichment.

Product advantages and features

• Highly mobile and flexible: the equipment is integrated on a heavy-duty tire chassis, with front wheels that can be turned 180°, making it easy to haul and move, and able to change sites quickly to adapt to various complex terrains.

• Fast return on investment: the whole machine has low investment cost, only 1-2 people can operate it, with low energy consumption, it can quickly recover the cost.

• Durable and reliable:

  • Heavy-duty structure: the chassis adopts heavy-duty beams, equipped with 6 tires and 4 mechanical support feet, working smoothly and safely.

  • Strong drive: adopting pallet support + gear/sprocket drive, sturdy structure, can choose diesel generator or diesel engine direct drive, reliable power, low failure rate.

• Efficient recovery: Equipped with professional sticky gold blanket of sticky gold tank, it has good effect on fine-grained gold recovery and strong trapping capacity.

• High efficiency screening without clogging: adopting high manganese steel woven screen, large handling capacity, high efficiency and easy replacement. Heavy-duty double-deck and light-duty single-deck cylinder options are available to suit different materials.

• Self-sufficient: comes with its own power system (generator/diesel engine) and water pump, no need for external power supply, truly realizing independent operation in the field.

Applicable fields

• Alluvial gold mining: washing and enrichment of river, river bank and alluvial alluvial gold ore.

• Sand processing: recovering heavy minerals such as accompanying gold from construction sand and river sand.

• Tailings re-election: reprocessing of old alluvial gold tailings to recover residual gold.

• Geological survey: rapid sampling and evaluation in the exploration stage of the mine site.

Cylinder type selection

• Heavy-duty double-deck cylinder: the inner layer is screen bar structure, which is used to block the impact of large materials and protect the outer screen, which significantly improves the screen life and screening efficiency. Suitable for raw materials containing large gravel.

• Lightweight single-layer cylinder: the overall weight is lighter, reducing the weight of the equipment and energy consumption. Suitable for the scenario where the material is more uniform and does not contain large rocks.

Technical Parameter Table

Note: The "diesel generator" in the power configuration means to provide power for the motor and water pump of the whole set of equipment, and the diesel engine can also be optional to drive the drum directly.

Why choose our mobile trommel screen?

1. All-in-one solution: Provides a complete process from screening, washing to gold processing without the need for additional equipment.

2. Ultimate Flexibility: Unique mobile chassis design allows the production line to "go wherever you go", following the transfer of the ore vein.

3. Economical and practical: Designed for small and medium scale production, it is the first choice for business start-up and flexible production with small investment, low personnel requirement and fast return.

4. Sturdy and durable: heavy-duty design from chassis to cylinder ensures stable operation of the equipment in harsh field environment.

5. Guaranteed Recovery: The professional design of the sticky gold tank ensures that gold particles, especially fine-grained gold with high value, are effectively recovered.
